G.652D Aerial Self-Supported ASU Fiber Optic Cable has a loose tube structure and water-resistant gel compound to provide crucial protection for the fiber. Over the tube, water-blocking material is ap
| Product Information: |
G.652D Aerial Self-Supported ASU Fiber Optic Cable has a loose tube structure and water-resistant gel compound to provide crucial protection for the fiber. Over the tube, water-blocking material is applied to keep the cable watertight. Two parallel fiber reinforced plastic(FRP) elements are placed on the two sides.The cable is covered with a single PE outer sheath. It is especially suitable for installation in aerial for long-distance communication.
| Temperature Range: |
Operating :-40C to 70C
Storage:-50°C to 70C
Installation :-30C to 70
Bending Radius:
Static 10D
Dynamic 20D
| Features: |
Proven all-dielectric loose tube construction lmmune to electromagnetic fields Fast,
one-step installation Integrated FRP strength elementsRound cable profiles minimize wind and ice loading
FRP Filled element make cable hight tension
Tube filling gel
Loose tube stranded
PE sheath outdoor cable
Anti water yean protect cable from water

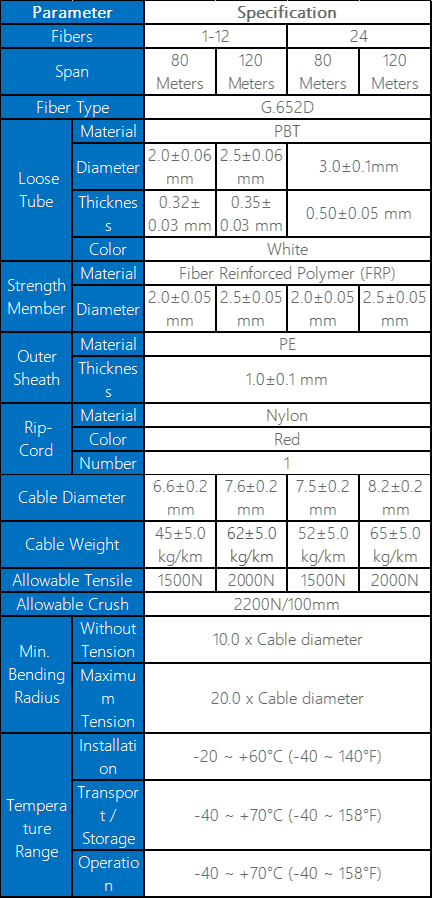

| Product Specification: |
| Description: |
The 2~24 Fibers ASU CableAS80 and AS120) is a Self-Supported Optical Cable, lt was developed toprovide the connection between devices, being indicated for installation in urban and rural networksin spans of 80m or 120m. Because it is self-supported and totally dielectric, it has FRP strengthmember as a traction element, thus avoiding electrical discharges in the networks. lt is easy to handleand install, eliminating the need to use strings or grounding.
t is mainly used in the communication route of overhead high voltage transmission system, and canalso be used in the communication line under the environment such as lightning zone and longdistance overhead line.
ompared with the stranded ADSS Kāpe fibe opitikí, This Kāpe fibe opitikí can not only save the use ofimported aramid yarn, but also reduce the manufacturing cost due to the reduction of the overalstructure size. Compared with the common 150-meter span ADSS-24 Kāpe fibe opitikí , the price ofthe This cable of the same specification can be reduced by 20% or Lahe.
| Questions & Answers:: |
Q1：Ko ha tokotaha ngaohi koe?
A1: ‘ Io. Ko ha tokotaha fa‘u kimautolu mo e ta‘u ‘ e 15 ‘ o e hisitōliá. ‘ Oku tau tu‘uaki ‘ a e totongi lelei tahá mei he fale ngāué.
Q2：‘ E lava ke ke tuku hoku hingoa faka‘ilonga (logo) ki he ngaahi me‘a ko ení?
A2: ‘ Io! ‘ Oku mau tu‘uaki ‘ a e ngaahi ngāue fakapalōfesinale ‘ o e OEM. ‘ Oku lava ke ‘ ai ‘ e he‘etau fale ngāue ‘ a e va‘ingá ke ‘ atā ‘ a e ngaahi tu‘utu‘uni lahi.
Q3：‘ Okú ke tali ‘ a e ngaahi tu‘utu‘uni iiki?
A3: ‘ Io, ‘ oku ala ma‘u pē ‘ a e ngaahi tu‘utu‘uni iiki. ‘ Oku tau poupou‘i ‘ a e ngaahi ngāue fo‘ou ‘ a ‘ etau kau kasitomá ‘ i he‘etau ‘ ilo‘i na‘a mo e ngaahi tupu‘anga fakapisinisi lahi mei he ngaahi tu‘utu‘uni īkí.
Q4：‘ E lava ke ke tokonaki mai kiate kitautolu ‘ a e ngaahi me‘a lahi ange ke tokoni‘i ai kitautolu ke tauhi ‘ a e ngaahi fakamole lahi ange ‘ o e vaká?
A4: Ko e mo‘oni. Kepele OPGW, kapele ADSS, Kepele ACSR, kapele FTTH Drop, kakale fibe ‘ i tu‘a, kakale fibe ‘ i loto, Ko ‘ etau ngaahi me‘a tefito ‘ a e ngaahi me‘a tefito.
